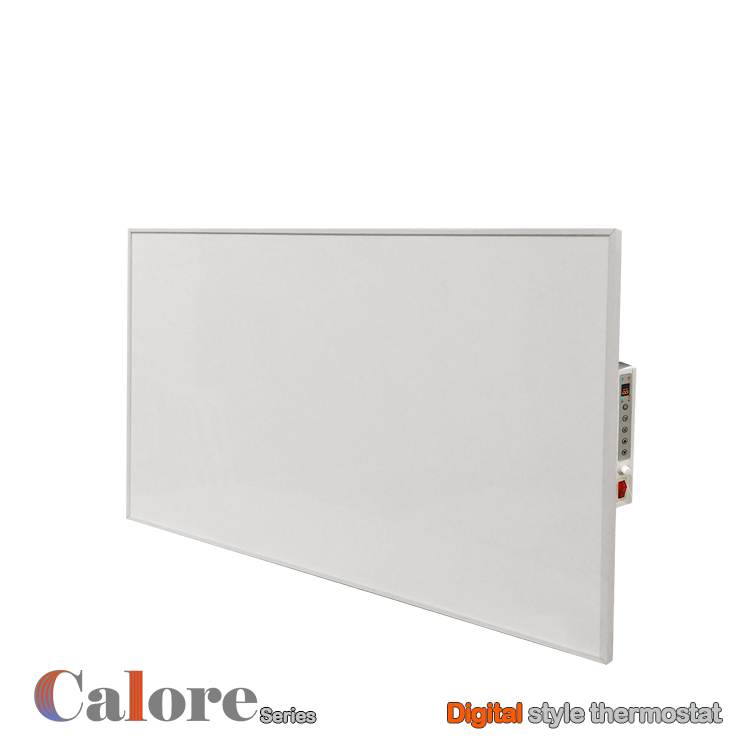

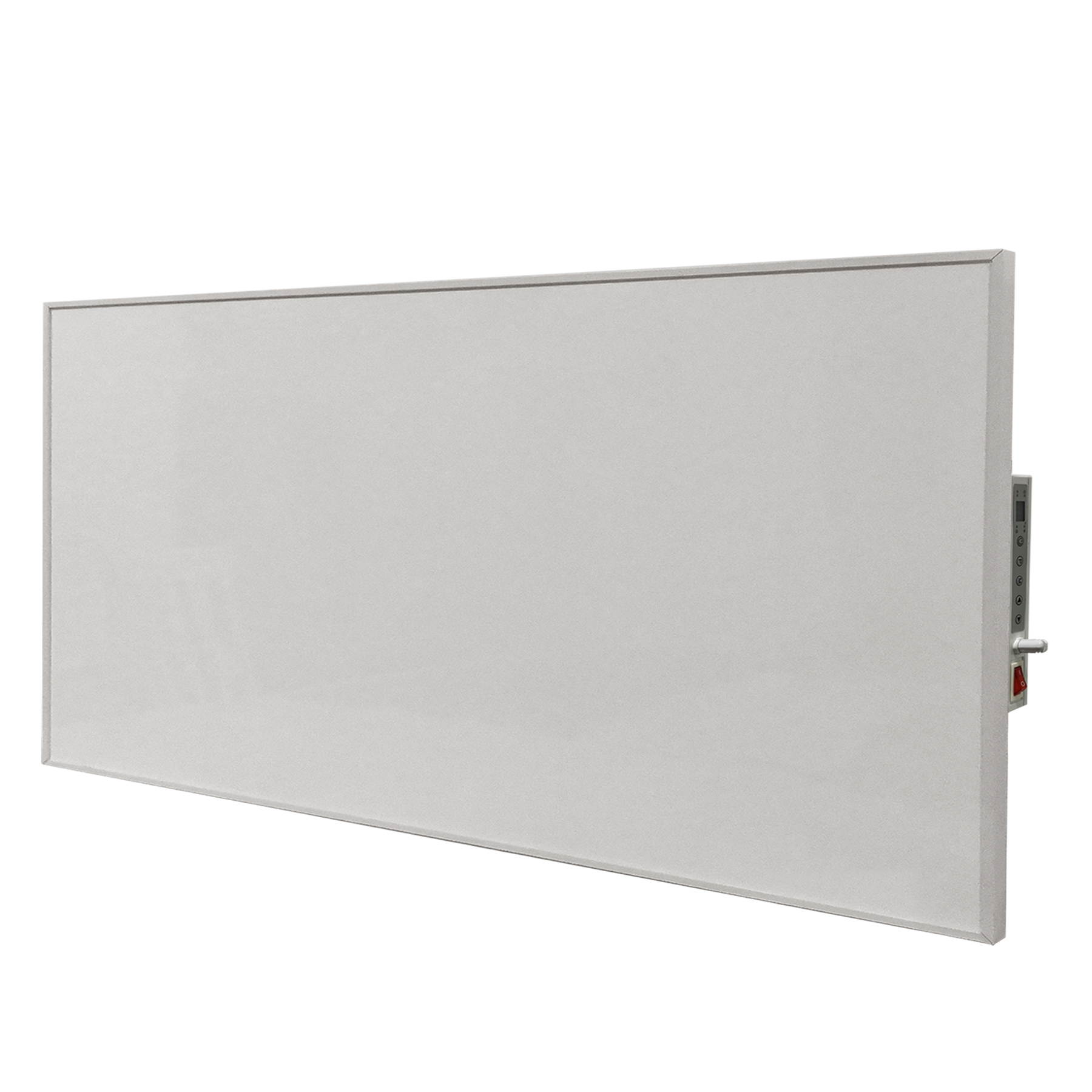

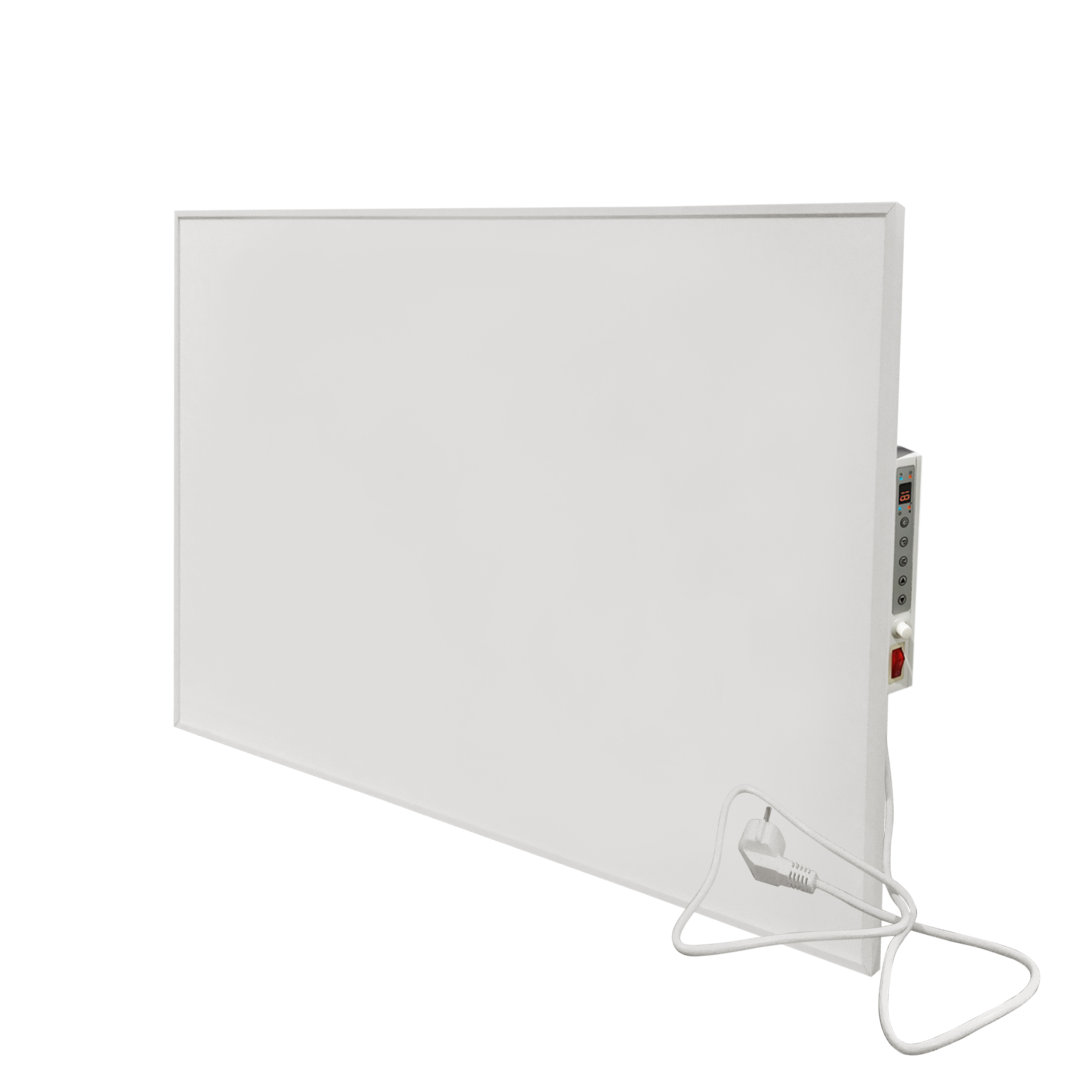

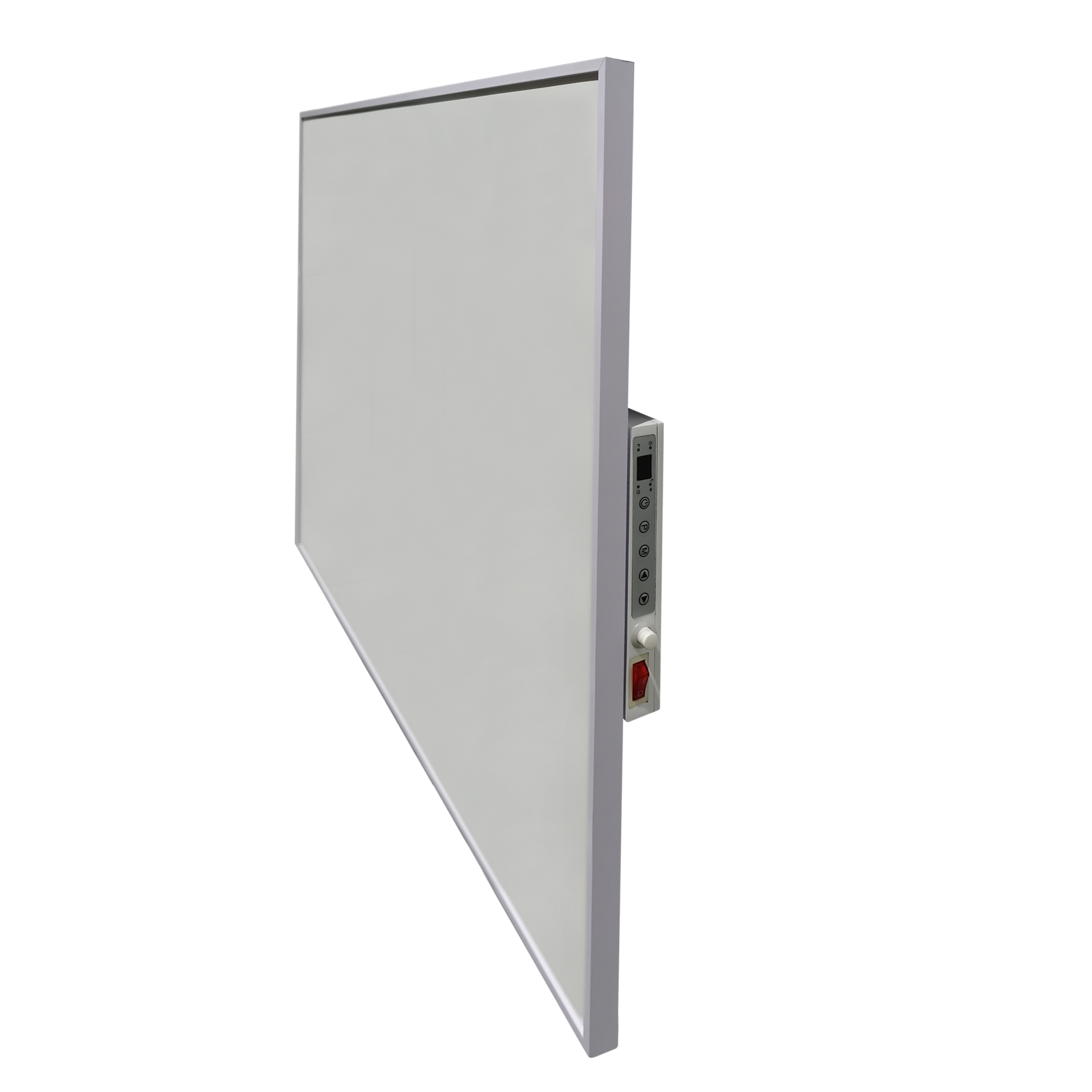

Infrared Carbon Crystal Panel Heater With digital thermostat

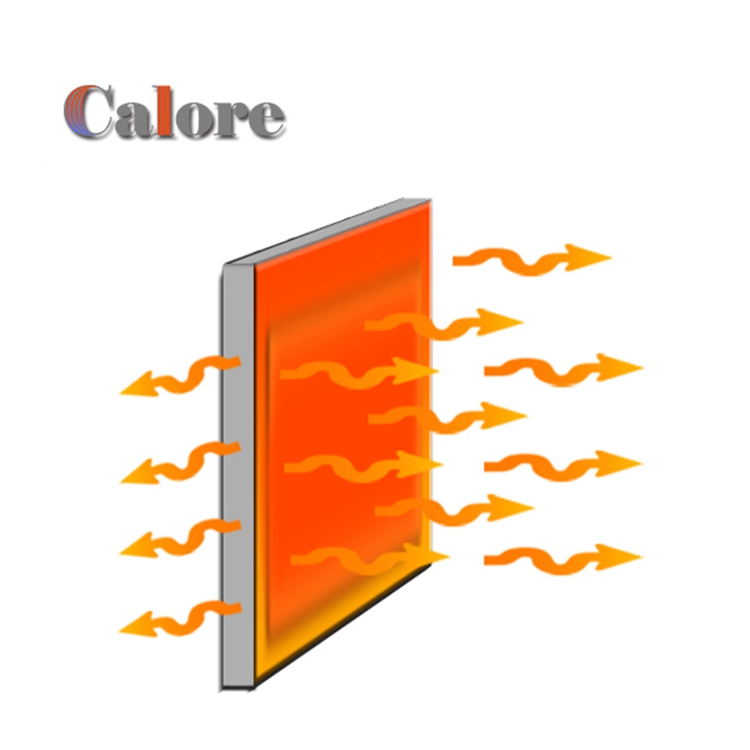

The Graphene heating elements of the carbon crystal panel heater is a professional infrared radiant heating elements, which has a balanced surface temperature of the heat source, good heat exchange and a certain thermal inertia. Carbon crystal heating technology directly converts electrical energy into heat, and directly transmits thermal energy radiation to the human body; heating technology directly acting on the human body, heating technology on the surface of an object, and innovative technology combining aluminum bodies, aiming to radiate infrared radiation Combined with the aluminum shell of the branch air duct, the space heating is more uniform, faster, and more efficient, and the heating experience is better.

High-quality aluminum housing, compartments, multi-channel design, the heat emitted by the carbon crystal plate heats the housing, and at the same time heats the air in the compartments, continuously forming updrafts, forming a negative pressure chamber, so that the air is continuously sucked in and supplemented The air is heated again, and then sprayed out of the cabin, forming natural convection within this range. After the wall is heated by thermal radiation and thermal convection, the accumulated heat will be released back into the space again, providing the environment with the ability to maintain ambient temperature, forming two The secondary thermal inertia provides a relatively balanced heat distribution for the space; the thermal energy generated by the continuous organic combination of thermal radiation and thermal inertia in the area near the surface of the radiator, the converted heat can be transferred to the air in time to form a thermodynamic cycle.

> Product series: CALORE series.

> Type of heating: Far infrared heating.

> Surface Temperatures: 60-90℃.

> Main Color: white,UV coating or Customized truecolor pictures.

> Heat transfer efficiency: 98%.

> Heat radiant Distance: 2-3 M.

> Rated Power: 300, 360, 400, 450, 480, 600, 720, 800, 960, 1200W (Optional).

> Protection Level: Option IP44. Class: I

> Rated Voltage: 100-127 V~, 220 -240 V~, 50-60 Hz.

> Overheat protection: Dual.

> Far Infrared radiant wave length: 8~5 um.

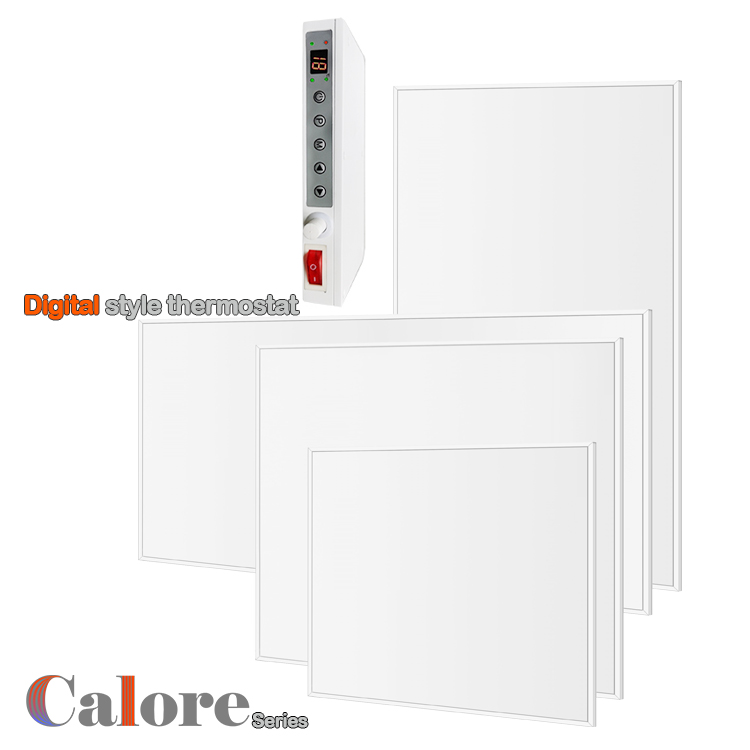

> Electronic control with 2 digital LED display.

> Thickness: 21 mm

> Lifetime: 100000 Hours ( more than 10 years )

> Applications: Bedroom/Living room/ Bathroom/ Training room/ Office. etc.

> Switch: NO/OFF Rocker switch with indicator light.

> Controller type: Digital programming timer, Remote, and Wi-Fi (Option) etc.

> Function: Digital adjustable thermostat, Overheat protection, P1~P5 programs, window opening detection, Temperature offset, Holiday plan, 4 heating modes, 4 operation indicators, keypad lock, etc.

> Option: Tuya smart app. 7days * 24 hours programming, UV coating, truecolor picture, Aluminum back plate.

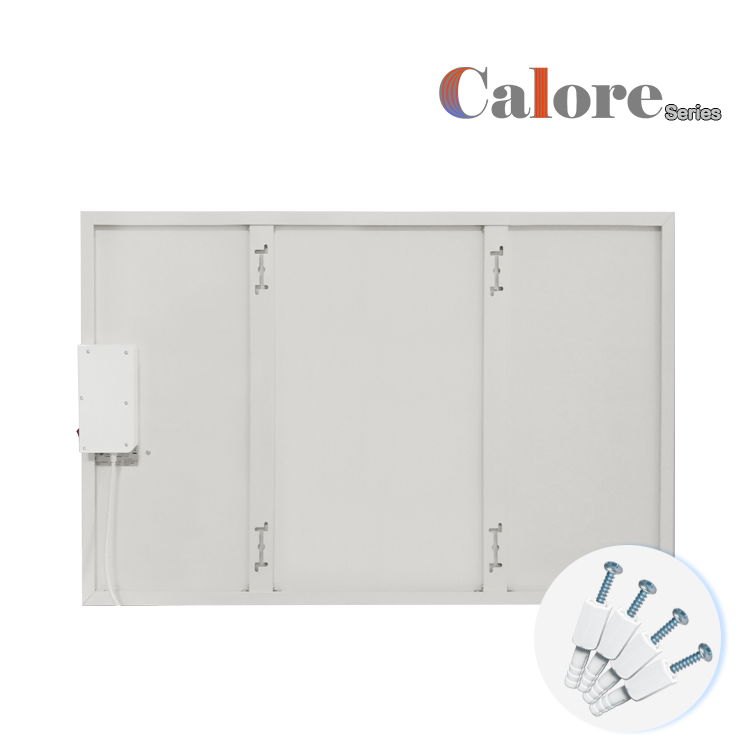

> Installation: Wall mounted, Ceiling mounted, floor stand.

> Power Cord Length: 1.8 M/ 5.9 ft

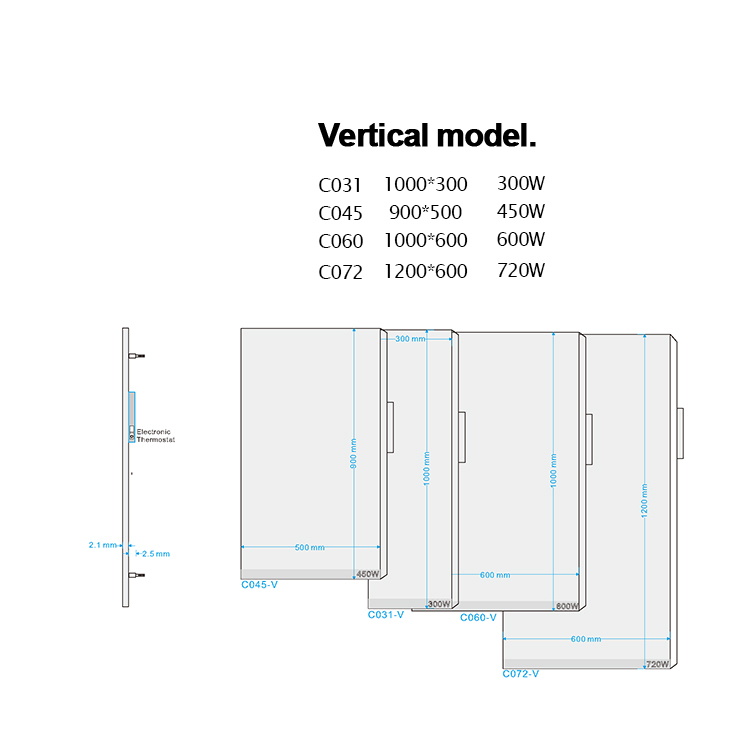

Specification

The main structure and components of Infrared Panel Heaters

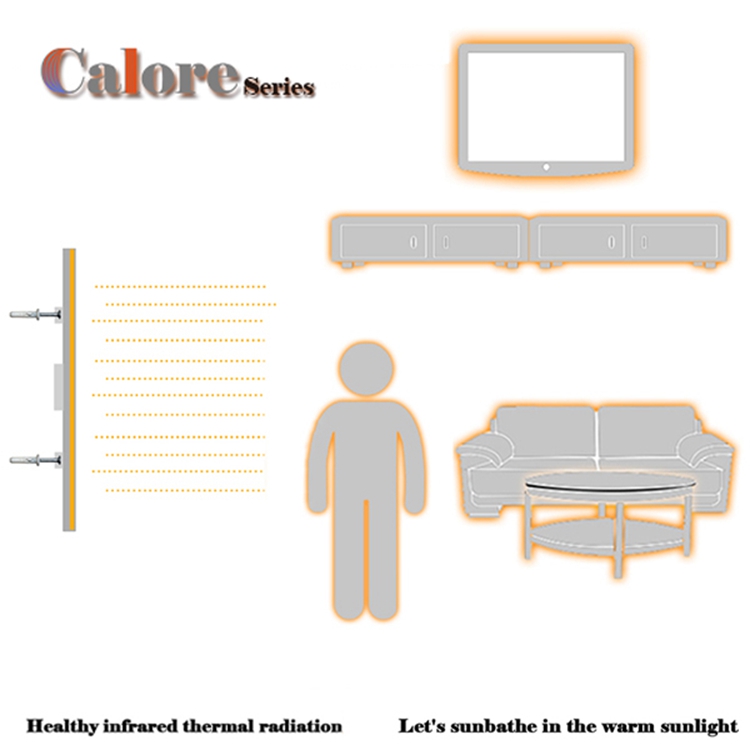

Far infrared panel heaters heating simulation
