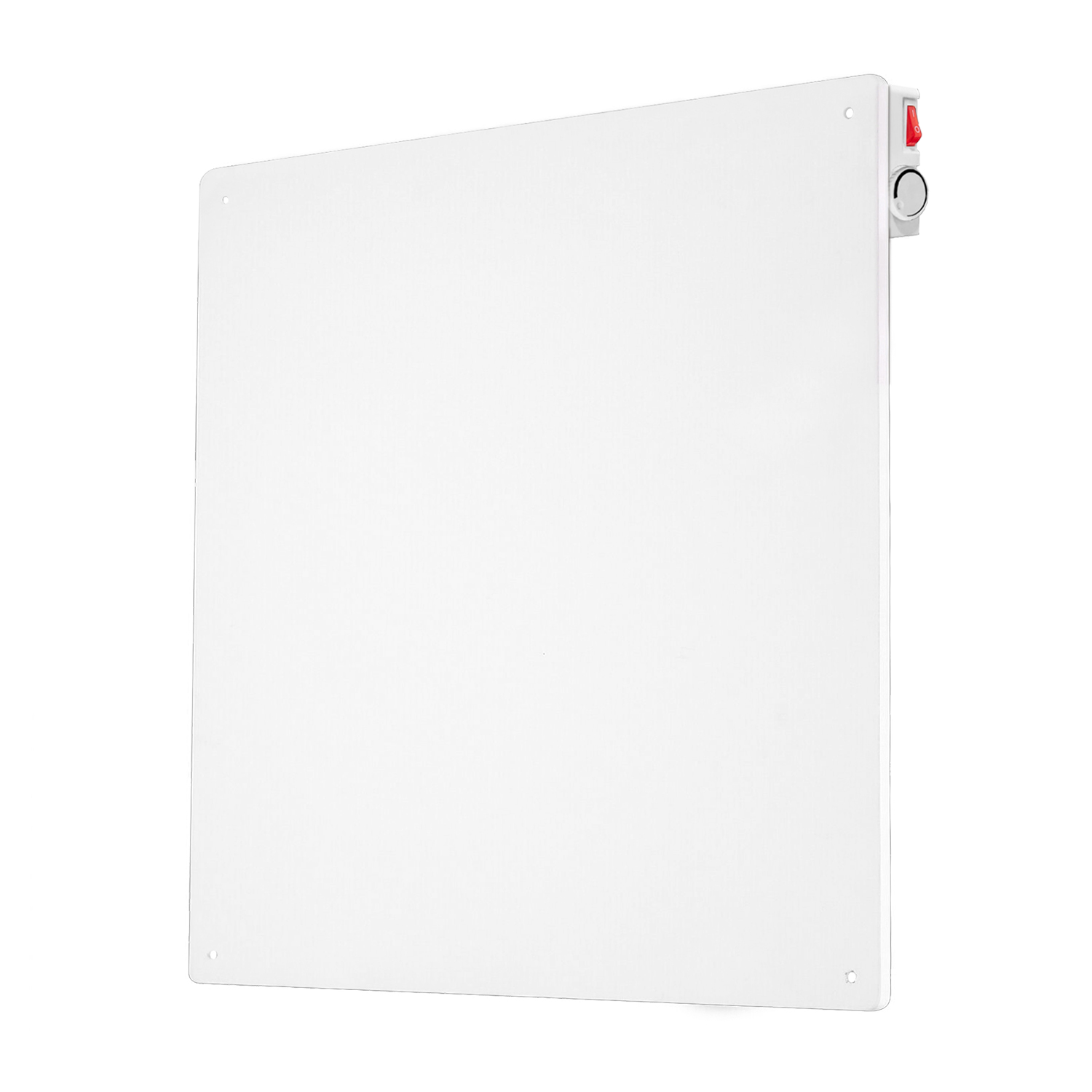

WALL CONVECTOR PANEL HEATER---Mechanical style P40

WALL CONVECTOR PANEL HEATER---Mechanical style P40

The SINRAD wall convector panel heater, uses the Reinforced insulation of electric heating cable to the ceramic heating body. This is thermal inertia ceramic heating panel, it can be uniformly heated, and the ceramic board are evenly heated. It has a good heat storage capacity. The heat is stored and then slowly and evenly released into the air, it can make the heat output of the heater continuous. Wall convector heater can form a convection duct with the wall, forming a mild, low-temperature convection cycle, and efficient heating Efficiency and excellent economic performance, breathe more smoothly and feel more comfortable. Silent Operation, Lighter, Low wattage, Energy efficient, DIY painting in the surface.

details

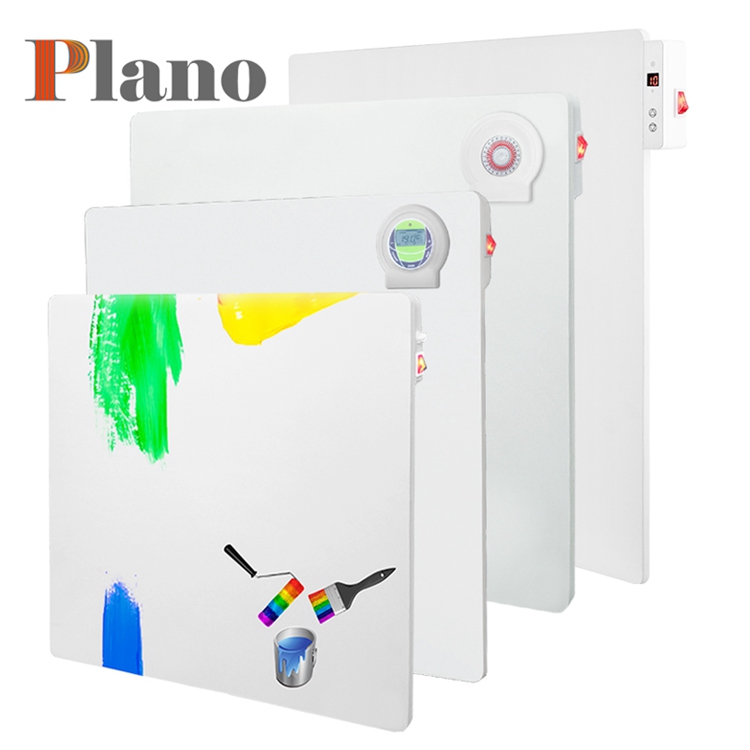

PLANO wall convector panel heater, itself is a non-luminous low-temperature convector heater. The low temperature heating technology, Low temperature convection heating, slow convection, mild and not dry. It heats the body surface, walls, surfaces and objects within its range. These entities in the space can accumulate heat, and then heat Then it is slowly and evenly released into the air, forming a more evenly distributed heat, which feels like being bathed in the spring sunshine. Plano wall convector panel heater is wall-mounted on the wall and can form a convective air duct between the wall and the wall to form a gentle, low-temperature convection cycle. The air will not dry out. People living in it feel very gentle and comfortable, and breathe very well. Naturally, smoother, without feeling of heat. PLANO ceramic panel heater is lighter, silent, low energy consumption, low power, comfortable, efficient heating efficiency and excellent economic performance; Plano's surface material of the ceramic plate heater can meet the performance of painting acrylic and other paints, so that we can let the child make a graffiti board. Maybe one day, he or she will become a painting master.

◆ Application: Household Indoor usage.

◆ Power source: Electricity.

◆ Use: Bedroom, Living Room, hall, conservatories, office, utility rooms etc.

◆ Product type: wall convector panel heater.

◆ Heating area: 8~10 m²

◆ Voltage: 110-120 V~ /220-240 V~ 50/60Hz.

◆ Specification: 550 x 550 x 35 mm

◆ Power: 400 W

◆ Product Measure: 550*550/ 600*600/ 600*800*10 mm.

◆ Plug: VDE, BS, SAA ans so on.

◆ Color: White, Gray, Black, custom picture .

◆ Surface: Water paint, Ceramic and Plaster or water based paint.

◆ Panel Material: Fiber cement board/ Ceramic/ Stone similar.

◆ Electric Heater Type: Wall Convector panel Heater.

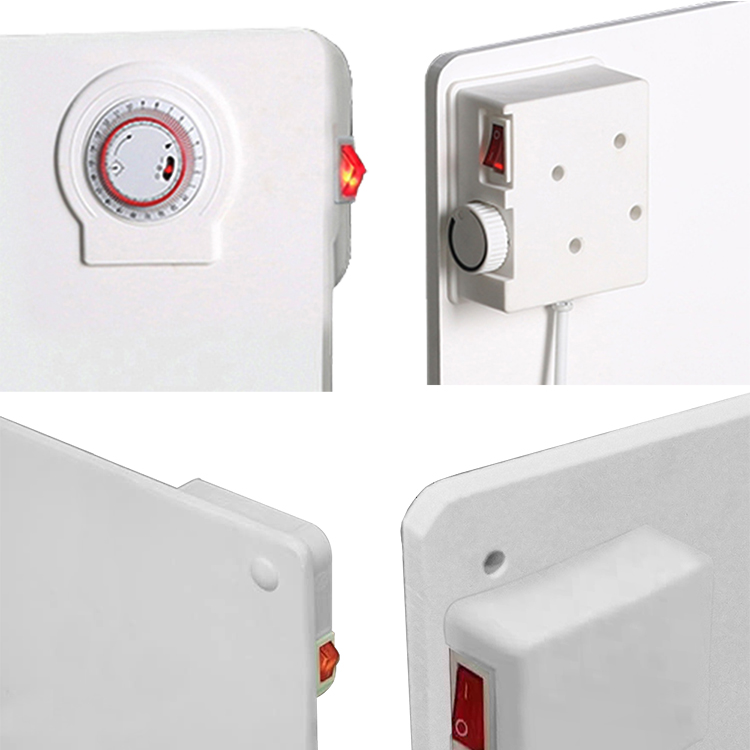

◆ Thermostat type: Basic style, Mechanical style, 24 Hours Timer,

◆ Heating Element: Heating wire.

◆ Function: Adjustable thermostat, Overheat Protection, tal timer.

◆ Installation: Freestanding, Portable, Wall Mounted, Ceiling, Freestanding

No.	Model	Power	Specification	MEAS	N.W.	G.W.
1	P40 B/M/T	400W	55055010 mm	62636.5 cm	5.2	6.0
2	P42 B/M/T/N/R/W/L	425W	60060010 mm	66676.5 cm	5.9	6.8
3	P55 B/M/T/N/R/W/L	550W	60080010 mm	66876.5 cm	7.2	8.8

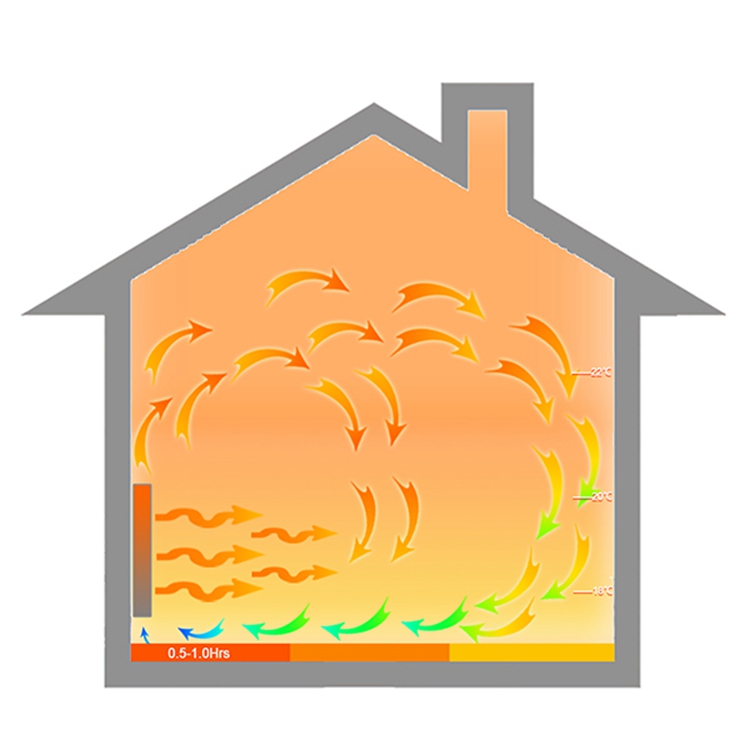

Mild wall convection heating mode simulation diagram

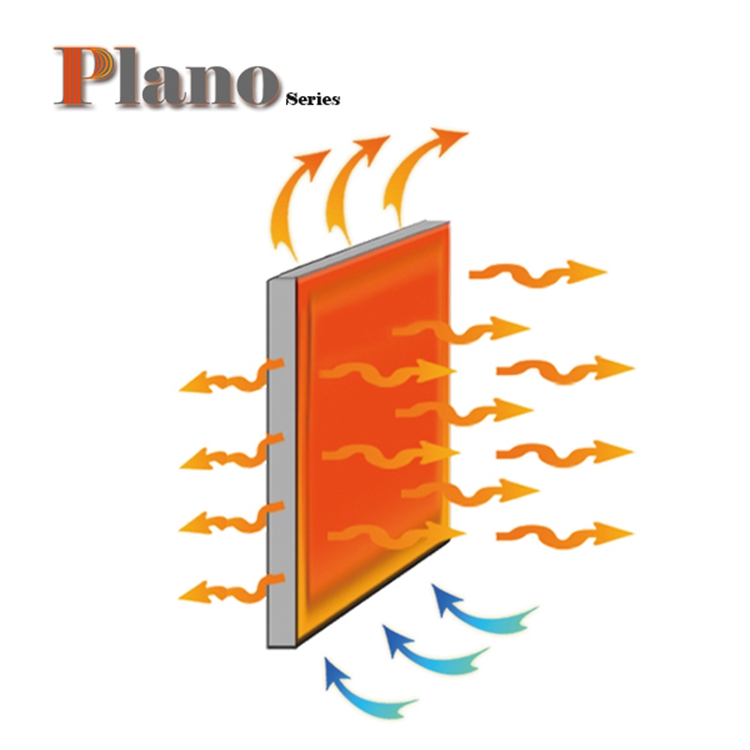

70% Wall nature convection +30% Infrared radiant Panel Heater

Wall panel heater difference temperature between near and far area
