Flying Series Electric Aluminum Convection Panel Space Heater With Mica Heating Element
The high-quality convection space heater, professional exchanger with low temperature is the foundation and core of our SINRAD convection heating technology; Low-temperature heat exchange technology, the heat transported by the heating elements is no more than 120℃℃, and the air has sufficient access and heating areas will allow the heat output to be exchanged in time for air, heating the space. This is the key to evaluate the performance of professional convection heaters; A good heating resistors can ensure that more than 95% of electric energy is converted into heat energy, This convection heater is one of the important indicators of energy efficiency; A high-quality convection heaters can transmit heat to the heat exchange fins in a timely. The heat exchanger has enough air heating area to ensure 97% of the heat is transferred to the air, heating the space, and using economical energy consumption to get a very comfortable heating experience.
● Product series: Flying series.
● Type of heating: infrared and convection heating method.
● Multichannel aluminum shell.
● Fast heating, long lifespan.
● Heating element:
M: Mica plate heating element.
B: Blackened aluminum plate heating body.
● Mica radiant plate heating element.
● Low temperature heat exchange technology.
● Surface Temperatures: 60-90℃.
● Main Color: white or Customized Color.
● Heat Transfer Efficiency: 98%.
● Rated Power: 600/900/1200/1500/1800/2000 (Optional).
● Protection Level: IP20. class: I.
● Rated Voltage: 220 -240V~, 50-60Hz.
● Support double over heat protection.
● Electronic control with LCD interface.
● Thickness: 80mm.
● Lifetime: 50000Hours ( more than 10 years )
● Applications: Bedroom/Living room/ Bathroom/ Training room/ Office. etc.
● Switching NO/OFF with indicator light.
● Control type: Digital timer and Remote.
● Function: Adjustable Thermostat, Overheat Protection, 24Hrs Digital timer and 7*24Hrs Digital
● Installation: Wall mounted, Floor stand
● Power Cord Length: 1.8 M/ 5.9 ft.
| No. | Model | Elements | Power | Specification-mm | MEAS- cm | N.W. --kg | G.W.--kg |
| 1 | F06 M/B | 6 | 750 |
640*540*80 |
67*64*13cm |
6.1 | 7.6 |
| 2 |
F08 M/B |
8 | 1000 |
800*540*80 |
82*64*13cm |
7.5 | 9.5 |
| 3 |
F10 M/B |
10 | 1500 |
960*540*80 |
97*64*13cm |
8.9 | 11.5 |
| 4 |
F12 M/B |
12 | 2000 |
1120*540*80 |
112*64*13cm |
10.3 | 12.5 |

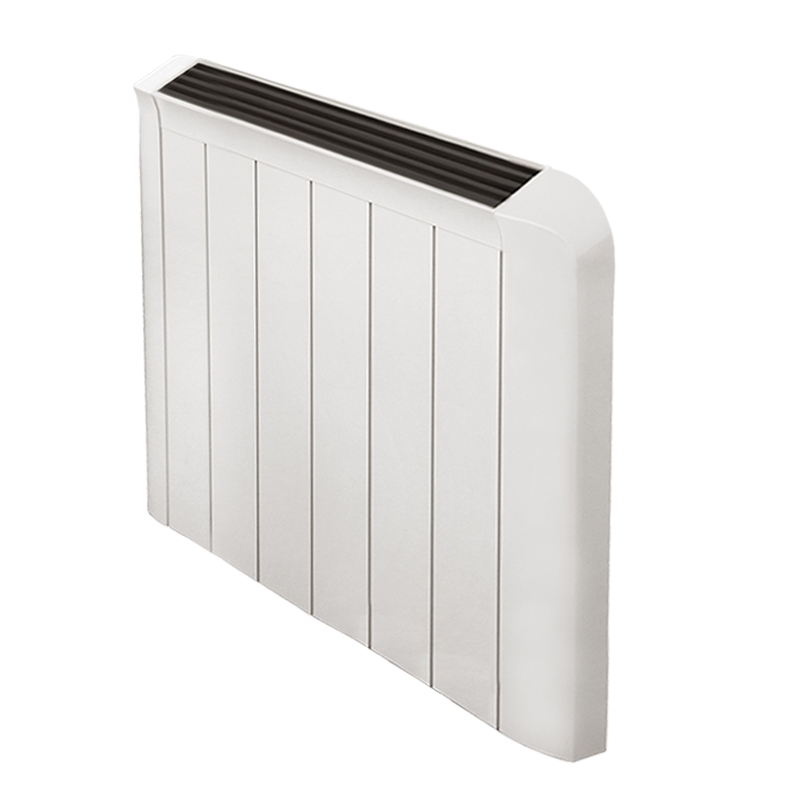

Electric Aluminum Convection Panel Heater With Mica Heating body

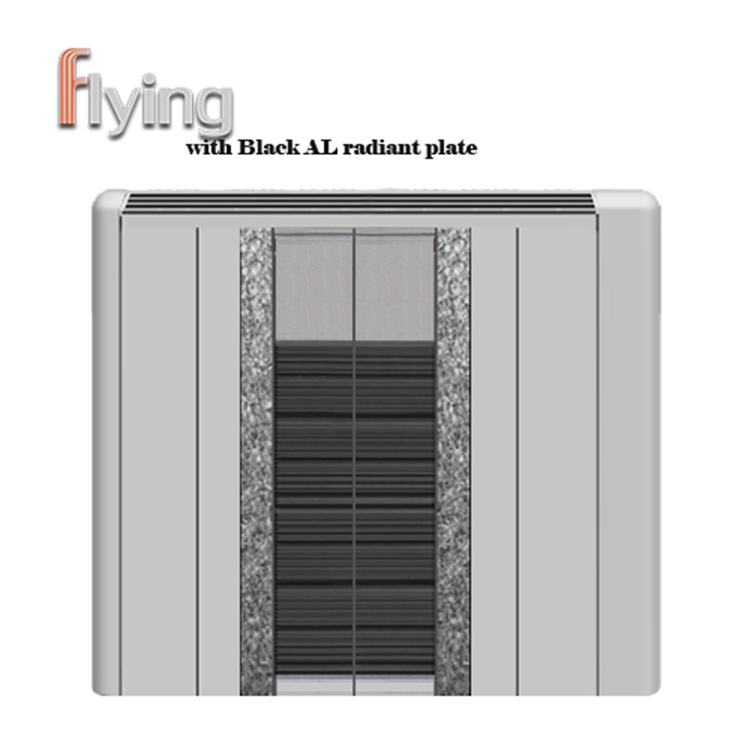

Electric Aluminum Convection Panel Heater with black al plate

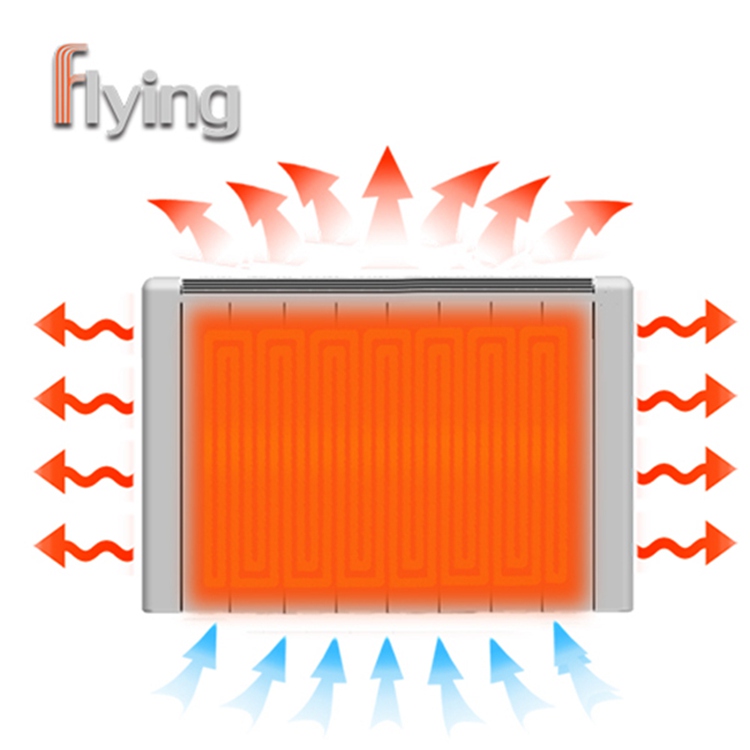

Simulation of infrared and convective heating method

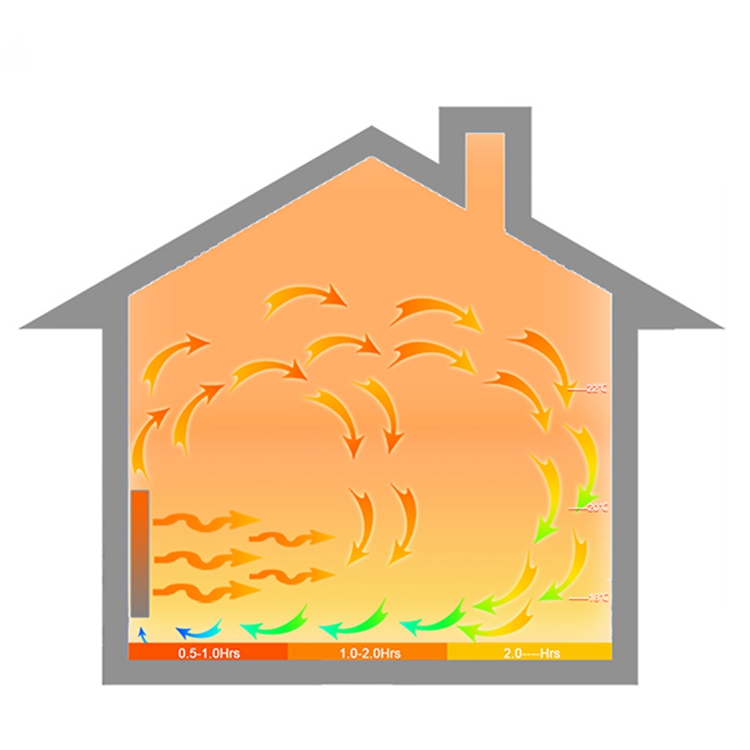

Simulation of room convective heating method
