Flying Series Energy-efficient Inertia Ceramic Block Panel Heater With Aluminum

Sinrad's Flying series thermal Inertia electric radiator adopts aluminum extruded sections and thermal inertia ceramic heating body. The internal heat source is evenly heated. The ceramic plate is heated in a balanced manner. The magnesia brick has a good heat storage capacity and can keep the heat Inertial output, continuous heat supply, high-efficiency energy efficiency and excellent thermal performance are designed for the heating needs of large-space houses, public buildings, public spaces, commercial buildings, office spaces, medical and educational institutions.

details

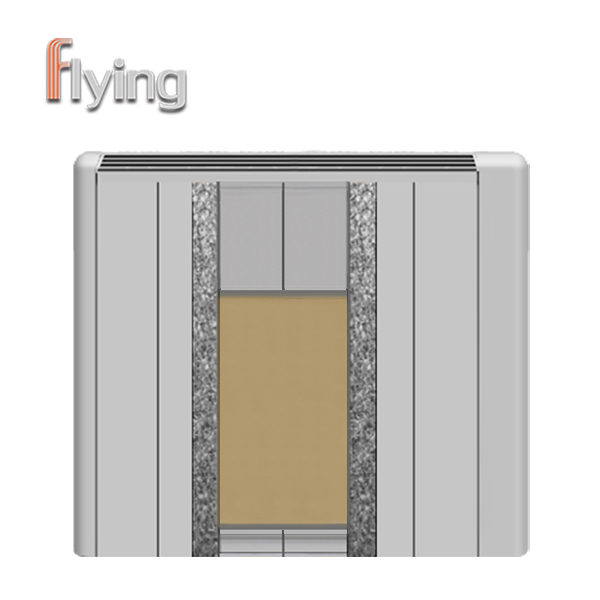

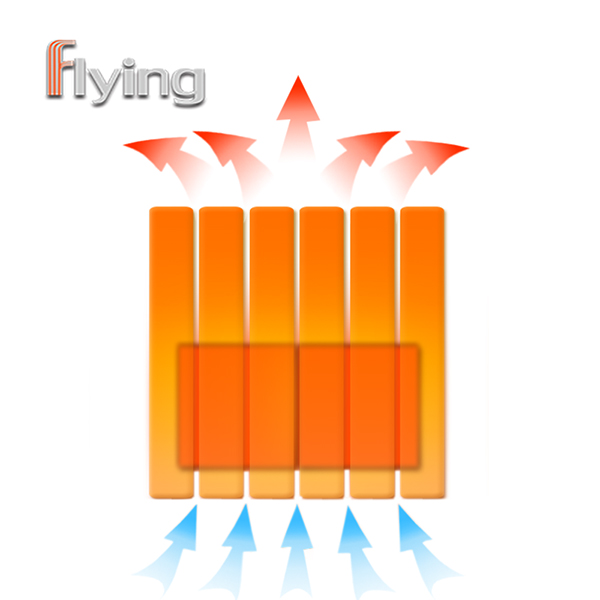

Sinrad's Inertia aluminum electric room heaters are designed specifically heating requirements for larger rooms, public buildings, public spaces ,stairwells, commercial buildings, office space, medical and educational etc ;These spaces are generally with high spaces and with larger open areas with larger Windows, glazed wall, or short wall, An unenclosed space traditional heaters can be difficult to heat effectively. Therefore, the omni-directional efficient heating mode, continuous, inertial heat transfer, relatively mild insulation curve, Make the heating experience more comfortable and the temperature changes more gently; The Extruded aluminum body has its own special advantages, each of the units become an independent convection air duct, Each duct is uniformly heated, air convection effect balance, It makes the heater's thermal performance more efficient!When a ceramic plate is heated, its surface temperature is balanced, equilibrium temperature, heat carrier body of magnesium oxide,it has good heat storage capacity, can make the output of heat to maintain a certain inertia, continue to provide heat, high energy efficiency and excellent thermal property, the inertia ceramic aluminum room heaters become a professional cost-effective heating solution; Flying series inertial aluminum room heaters are the core technology of these products; The professional Sinrad Thermostat controllers, energy storage ceramic dry electric radiators, it gives us a more imposing level of thermal performance.


Thermal Inertia electric room heater with aluminum body.

Energy storage ceramics electric radiators with Aluminum extruded sections.

For optimal thermal performance in large or open spaces;

* Thermal Storage Ceramic resistance with high thermal inertia;

* Aluminum extruded sections special body of panel;

* Energy Efficient thermal inertia electric heaters;

* Storage Heating Element with ceramic stone;

* Programmable digital thermostat controller with LCD display;

* Daily and weekly programming options;

* Programming: 3 pre-set programs and 3 programmable option

* Different input power from 1000W-2500W;

* Thermal Inertia Electric Radiator-70mm depth;

* Double overheat protection;

* Production grade: IP20, Class II;

* Standard color: White RAL9016;

* Safety thermal limiter;

* 100% Thermal efficiency;

* EUROPE-VDE, NEMA PLUG-UL, UK-British plug etc;

* Temperature settings:16--35℃;

* Operation model: Comfort, Economy, Antifreeze, Holiday, standby;

* The inertia electric radiators are supplied with wall mounted special brackets

No.

Code.

Model

Elements

Watts                                    (W)

Volts                              (V)

Net Weight     (kg)

Specification                     L*H*D mm

1

F06100S/C

Flying06S/C

6

1000W

220-240V

9.00

590*540*70

2

F08150S/C

Flying08S/C

8

1500W

220-240V

11.20

740*540*70

3

F10200S/C

Flying10S/C

10

2000W

220-240V

13.80

890*540*70



Flying Series Energy-efficient Inertia Ceramic Block Panel Heater With Aluminum

Flying Series Energy-efficient Inertia Ceramic Block Panel Heater With Aluminum

Flying Series Energy-efficient Inertia Ceramic Block Panel Heater With Aluminum

Flying Series Energy-efficient Inertia Ceramic Block Panel Heater With Aluminum
